Code NO. | Descriptioin | Q'ty |

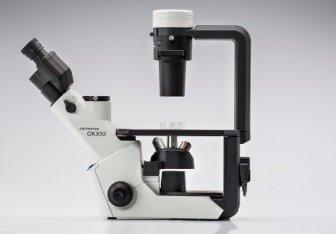

CKX53SF | CKX53 frame with binocular tube and eyepieces (2pcs),
including L-wrench GA4720, clamp for camera cable DO123600 (2pcs) and
AB4x8SA screw (2pcs) CKX53機架，帶三目觀察筒 | 1 |
COVER-012 | Dust cover Type 012 for CKX, CK（L 300mm x W 440mm x H 440mm） 防塵罩 | 1 |
CK2-SS | Stage extension plate 載物臺延伸板 | 1 |
CKX3-MVR | Attachable mechanical stage with right-hand vertical low drive controls.
帶右手柄機械載物臺 | 1 |
CKX3-SLP | Phase contrast slider for CKX53 IPC observation, pre-centered.
CKX53 IPC相襯滑板 | 1 |
UPLFLN4XIPC | U plan semi apochromat phase (pre-center) objective 4X/0.13,W.D. 17.0 4X IPC相襯專用物鏡, NA 0.13, 工作距離17mm | 1 |
CACHN10XIPC | Acromat phase (pre-center) objective 10X/0.25, W.D. 8.8mm
10X IPC相襯專用物鏡, NA 0.25, 工作距離8.8mm | 1 |
LCACHN20XIPC | Long working distance achromat phase contrast (pre-center) objective 20X/0.4, WD 3.2
20X長工作距離 IPC相襯專用物鏡, NA 0.4, 工作距離3.2mm | 1 |
LCACHN40XIPC | Long working distance achromat phase contrast (pre-center) objective 40X/0.55, WD 2.2
40X長工作距離 IPC相襯專用物鏡, NA 0.55, 工作距離2.2mm | 1 |
CKX3-RFA | Reflected light fluorescence illuminator equipped with
field stop, 3-position fluorescence slider and 3-position (Light balance
filter, empty and shutter) Light balance slider, including Shield unit
AW3961, B excitation filter set AW3963, G excitation filter set AW3964,
Dummy mirror unit AW2178, L-wrench GA3720, Filter fixing tool AD5544
and AB4X10SA (4pcs) (ND, empty and shutter) ND slider, including UV
shield plate AV7728, operation knob AE1678, allen wrenches AC7359 (2
pcs) and AB4X10SA screws (3 pcs)
CKX53反射熒光照明器，具有3個熒光鏡組位置，包含B激發濾色鏡組和G激發濾色鏡組 | 1 |
U-LH100HG | Lamp house for 100W mercury burner with collector lens and connecting cable 100W汞燈燈室 | 1 |
U-RFL-T | Power supply unit for Mercury lamp
供電器（220V電壓用） | 1 |
USH-103OL | 100W Mercury burner for U-LH100HGAPO, U-LH100HG 汞燈 | 1 |
UYCP-33 | Power cord 電源線 | 1 |
1650萬像素數碼采集裝置 | 700D |
|
圖像分析軟件 | 實時預覽觀察、拍照、錄像、測量、標尺、計數報告分析等功能 |
|
